Design Specification
1. Noise Cancelling Algorithm[1]1-1. Specter Subtraction Method (SS Method)
1-2. MAP method using Variable Speech Distribution
1-2-1. MAP Estimate Method
1-2-2. Speech spectrum distribution proposed by T.Lotter and P.Vary
1-2-3. Variable Speech Distribution
2. Implementation of the Noise Cancelling System
2-1.Separating into the Hardware and the Software
2-1-1.Features of the HW and the SW
2-1-2. Feature of Noise Cancelling System
2-1-3. Architecture
2-2. Hardware
2-2-1. Processing flow
2-2-2. Circuit structure
2-2-3. HW timing
2-3. Software
2-3-1. Source code
2-3-2. Flow chart
3. Development Environment
3-1. Hardware Design Process
3-1-1. Design Hardware Logic
3-1-2. Manual of Xilinx ISE and EDK
3-2. Software design process
4. Contest Design Target
5. SPEED and AREA
6. References
7. Download
17th LSI Design Contests・in Okinawa Design Specification - 3
3. Development Environment
1. MATLAB R2011b，Simulink :
This tool is used to design a Model-Base RTL circuit.
2. Synplify Premier with DP F-2011.09-SP1-1 :
This tool is used to transform a circuit described HDL to edf file.
3. Xilinx EDK(Embedded Development Kit)：
This tool is used to MicroBlaze and to design software. This tool has two functions; which are XPS and
SDK. XPS is used to design HW circuit, and SDK is used to design SW.
4. Xilinx ISE13.2:
This tool is used to create bit-streams; which is used to design all of circuit and to write circuit into
FPGA.

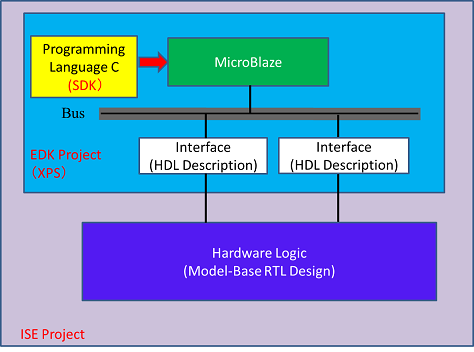

Figure 20
